New VOCOM for VOLVO, RENAUL, MACK TRUCKS diagnostic equipment

Scanner Volvo VOCOM Interface 88890300 is developed for Volvo/Mack/Renault Vehicles (trucks, lorries, busses) and Engines. It newest version of VOLVO diagnostic and support Euro 6 trucks! .The scanner Volvo VOCOM 88890300 communication unit enables PC to vehicle communication. The device connects to the PC via a USB cable or by wireless LAN using the 802.11 b/g standard.

Operating temperature range: -40 to +85°C (-40 to +185°F).

Storage temperature range: -40 to +125°C (-40 to 257°F).

Before the Volvo VOCOM 88890300 communication unit can be used, a driver must be installed on the PC. In addition, a utility application (Admin0020) can be used to check the status of the device and update the firmware if and when needed. There are three different ways, described below, of connecting communication unit Volvo VOCOM 88890300.

Volvo VOCOM Via USB-cable

Connect the Volvo VOCOM communication unit to the vehicle.
Connect the USB-cable between the Volvo VOCOM communication unit and the PC.
Select Volvo VOCOM communication unit 88890300 and USB-cable setting in window Alternative.

Product description for Volvo VOCOM communication unit 88890300

Volvo VOCOM Communication unit 88890300 has a number of different coloured LEDs. These LEDs show the status of the communication unit and indicate warnings, etc.

Software supported languages: English, Cesky, Dansk, Deutsche, Espalol, Francis, Italian, Magyar, Netherlands, Polski, Portuguese, Romana, Srpski, Svenska, Turkce, Russian.

Volvo VOCOM Supported trucks:

VOLVO TRUCKS: AC, FM10, NH565, FH12, FM12, VHD, FH16, FM7, VN, WC, WG, WI, FH565, NH12, FL6,FL7, FL10, FL12, NH525, WX, COMP04, FE, VHD, FH, FM, VM, FM9, F10, F12 , F16, NL10, NL12
VOLVO BUSES: B10B, B10M, B10L, B10R, M10R, B12, B58, B6, B7R, OLYMPIAN, SUPEROLY
RENAULT TRUCKS (with DXi engines): CESAR, KERAX, KERAXMIL, MAGNUM, MIDLUM, PREMIUM, SH 23, SH 510
MACK TRUCKS
VOLVO CONSTRUCTION EQUIPMENT (CE):
Wheel loader: L110E, L110F, L120E, L120F, L150E, L150F, L180E, L180F, L220E, L220F, L330E, L350F, L60E, L60F, L70E, L70F, L90E, L90F
Articulated Hauler: A25D, A25E, A30D, A30E, A35D, A35E, A40D, A40E, T450D
Excavator: EC135B, EC140B, EC140C, EC160B, EC160C, EC180B, EC180C, EC210B, EC210C, EC235C, EC240B, EC240C, EC290B, EC290C, EC330B, EC330C, EC360B, EC360C, EC460B, EC460C, EC700C, EC700B, EC700C, ECR145C, ECR235C, ECR305C, EW140B, EW140C, EW145B, EW145C, EW160B, EW160C, EW180B, EW180C, EW200B, EW210C, FC2121C, FC2421C, FC2924C, FC3329C, PL4611
Grader: G710B, G720B, G726B, G730B, G740B, G746B, G780B, G930, G940, G946, G960 ,G970, G976, G990
Compact Excavator: ECR88

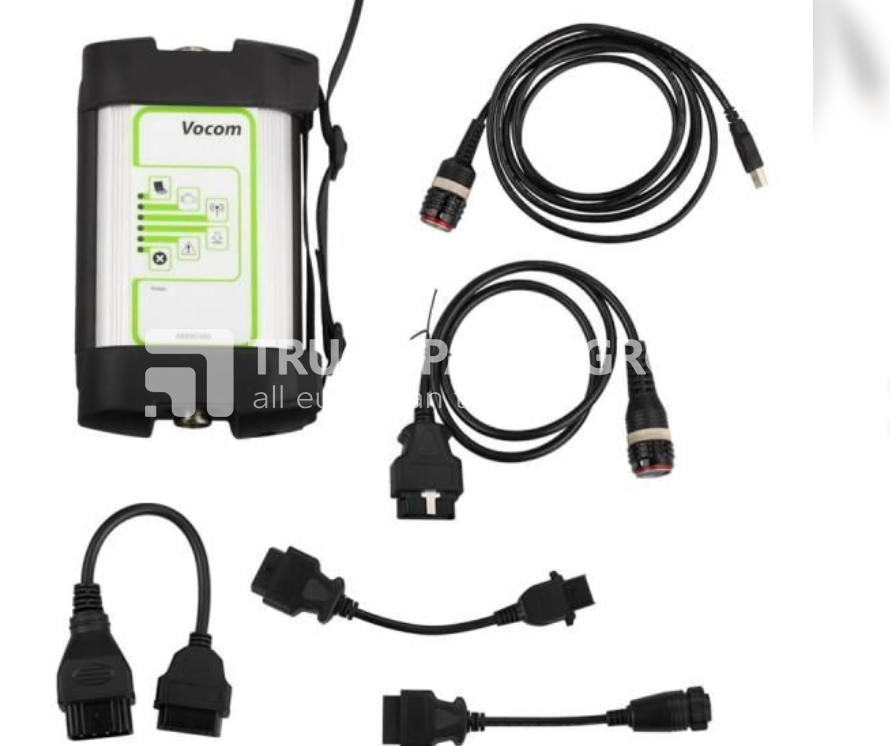

Set included:

1 pc x 88890300 Vocom Interface
1 pc x OBD2 Cable
1 pc x 8pin Cable
1 pc x 14pin Cable
1 pc x 12pin Cable for Renault trucks
1 pc x USB cable
